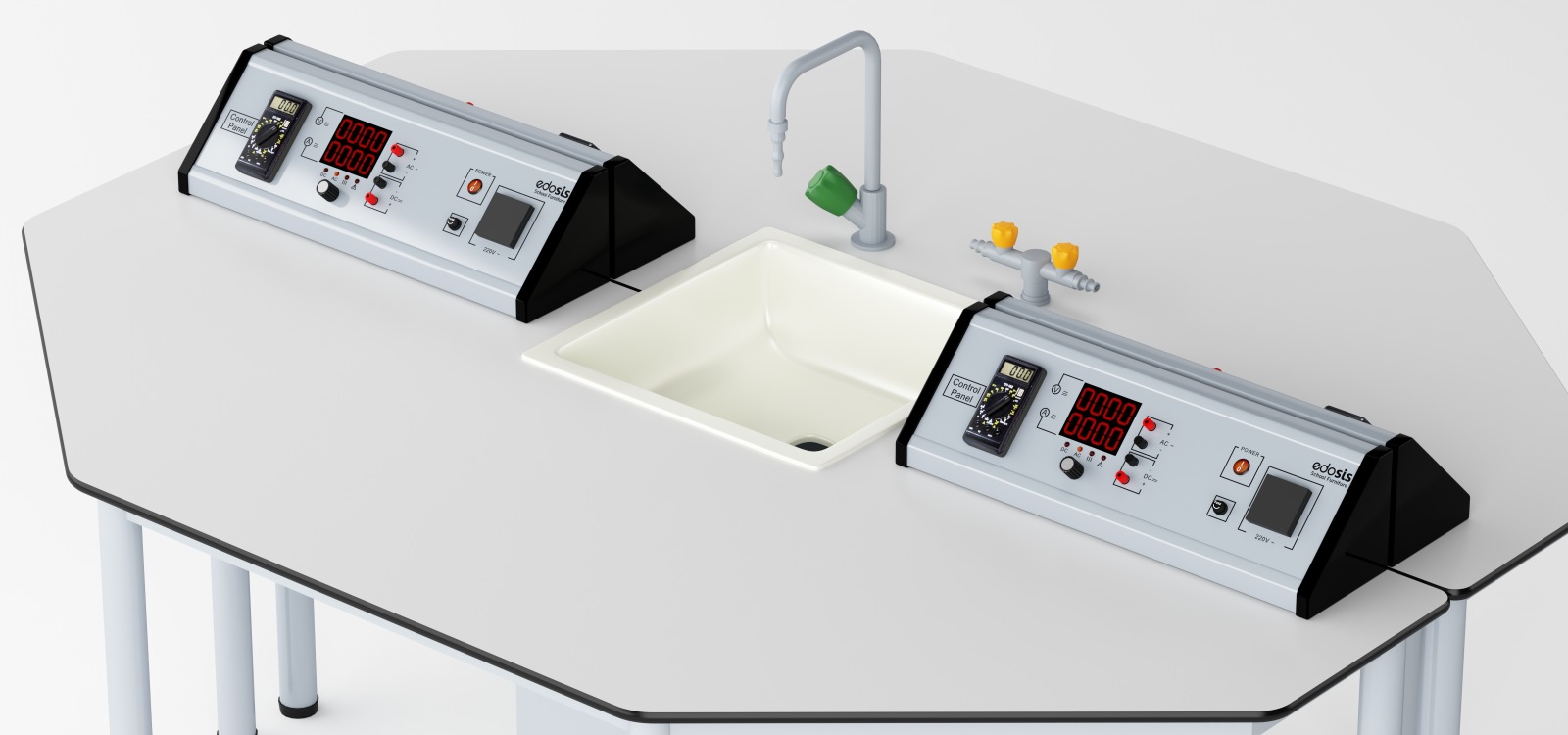

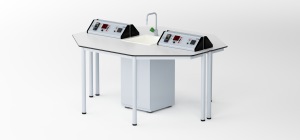

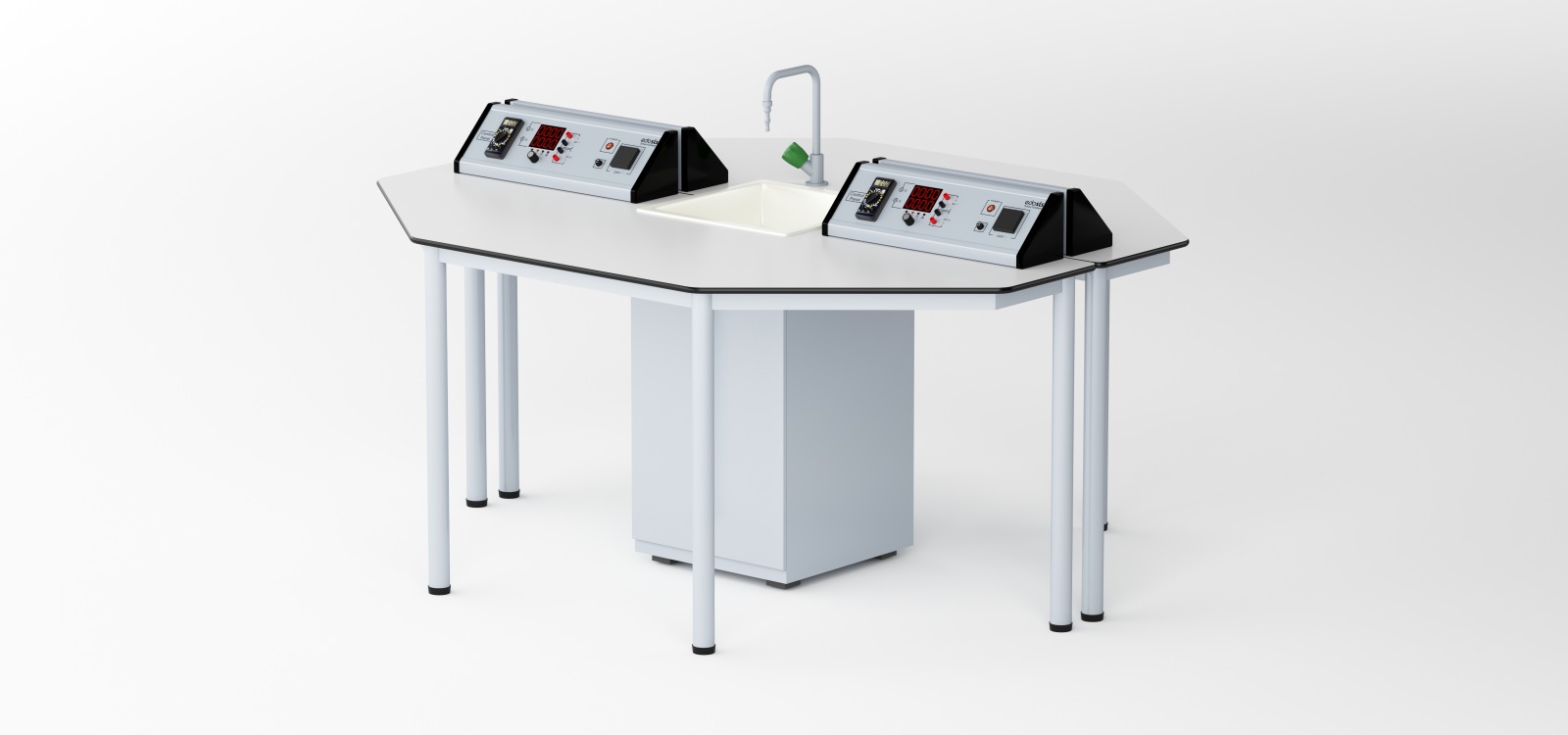

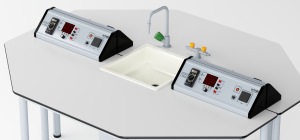

STUDENT ENERGY CONTROL PANEL TECHNICAL SPECIFICATIONS
It is designed to meet the power and measurement needs that the student will need during classes. Student Control Panel has an aluminum body. There is a Digital AC, DC power supply, Digital Multimeter measuring instrument and 220 v Socket on the panel.

LOW VOLTAGE POWER SUPPLY TECHNICAL SPECIFICATIONS
There is an electronic "direct current" and "alternating current" selection system on the Power Supply. After selecting "direct current" or "alternating current" operation, you can use 1.5 – 3 –4.5 – 6 –7.5 – 9 – 12 –15 volt power options electronically.
It has a 2-line digital display showing voltage and current on the Power Supply. The current drawn is automatically measured and displayed on the screen.
On the Power Supply, there is a red born terminal for Direct current and Alternating current positive output, and a black born terminal for negative output.
In case the power supply is short-circuited or excessive current is drawn, the current is cut off electronically and the warning LED lights up. When a short circuit or overcurrent is corrected, the LED automatically turns off and the power supply is activated.
There is an illuminated On/Off Switch and a 2.5 Ampere fuse on the Power Supply. There is a 220 V socket on the Power Supply.

LOW VOLTAGE POWER SUPPLY FUNCTIONAL SPECIFICATIONS
Input Voltage: 220 Volt ±10 50 Hz
Input Current: 2.5 Amperes
Output Voltage: 1.5 – 3 –4.5 – 6 –7.5 – 9 – 12 –15 Volt alternating current and direct current (Steps can be adjusted electronically.)
Output Current: 7 Ampere Max
Display Screen: It has a 2-line digital display showing voltage and current.
Alternating current and direct current outputs: There is overcurrent and short circuit protection.
Safety: Power Supply is grounded.

DIGITAL MULTIMETER TECHNICAL SPECIFICATIONS
Digital Multimeter DC voltage measurement range : 200m-2000m-20-200-500V/±%0,5
Digital Multimeter AC voltage measurement range : 200-500V/±%1,0
Resistance measurement range : 200-2000-20K-200K-2000KΩ/±%1,0
Screen : It has a 35x14 mm LCD digital screen.
